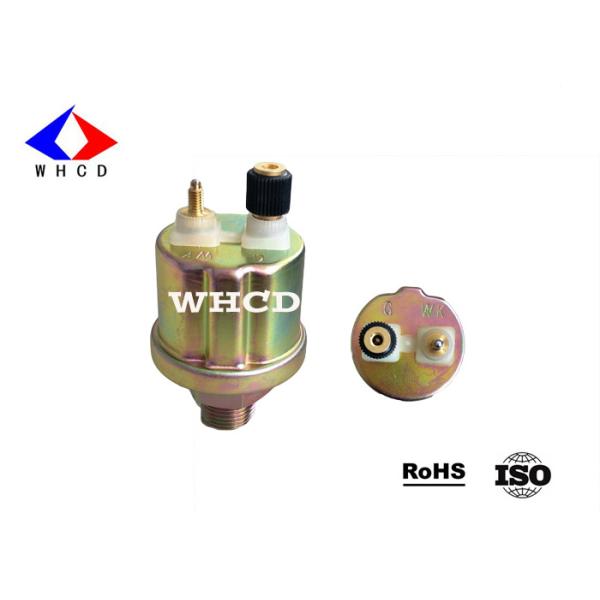

Truck Auto Parts Air Pressure Alarm Sensor With Color Zinc Plated

Truck Auto Parts Air Pressure Alarm Sensor With Color Zinc Plated

Application

Oil Pressure Sensor is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of industrial process, hydraulic and pneumatic control project, etc.

Technical Data

• Operating voltage:6~24V
• Conducting power: < 5W
• Operating temperature: -40 ~125℃
• Measuring range: 0~5 Bar or 0~10Bar
• Alarm: 0.8Bar or 1.4Bar
• Output signal: Standard resistance value: 10~184Ω
• Thread fitting: NPT1/4, NPT1/8, M10, M10X1, M14x1.5 or customized as requires.
• Protection rank: IP66

Feature

Superior long term stability

Temperature compensated over wide range

Low power consumption

Excellent repeat-ability / Hysteresis

Special design for customer

Many OEM options

Instruction

This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display. When the pressure is lower than the set value, the low voltage switch is on and the alarm light is bright. This product is simple in structure, convenient in use and reliable in performance.

Cautions

1. this product needs a wrench to be clamped to the six side nut and tighten the thread. The maximum tightening torque is 17N.m.

2.the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.

Our Service

1. Our quotation is always valid for you if there is no world market unrest.
2. Receiving your new inquiry, the details of products & the best price will be provided you asap.
3. 7 days replacement and 12 months repair free of charge for quality problem.
4. Port: Shanghai.
5. Payment: T/T.
6. OEM available
7. Delivery time is 7-10 working days.
8. All goods will be fully checked by our QC.
9. Package: The goods will be put into the packing box with instructions and certificate of quality first. Then we pack them into the box with polystyrene foam avoiding the damage to the products.
10. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
